    PTFE Molding Powder SF-5GL5M

    Ask Lasest Price
    Brand Name : Sinof
    Model Number : SF-5GL5M
    • Product Details
    • Company Profile

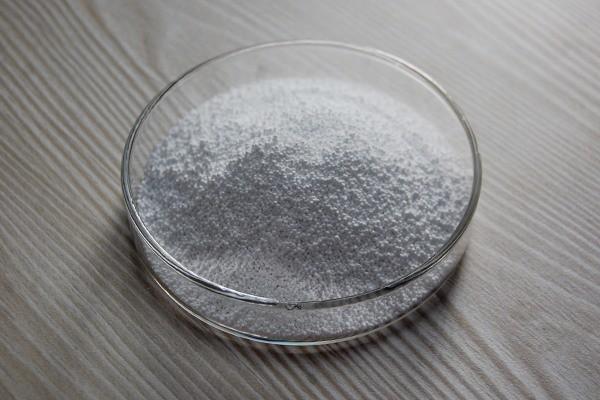

    PTFE Molding Powder SF-5GL5M

    PTFE Molding Powder (SF-5GL5M)

    Composition: 90% virgin PTFE, 5%±1% glass fiber, 5%±0.5% molybdenum disulfide


    Technical Properties

    Mechanical PropertiesUnitsTest MethodFree FlowNFF
    Specific Gravityg/cm³ASTM D48942.22±0.022.22±0.02
    Tensile strengthMPaASTM D4894≥20≥22
    Elongation at break%ASTM D4894≥240≥260
    Bulk Densityg/LASTM D4894780-870/
    HardnessShore DNEEDLE58-5458-54
    Diametric Shrinkage%INTERNAL2.0±0.52.0±0.5
    FlowSec/120gINTERNAL≤5/
    Average Particle SizeμmASTM D4894550±100/
    Recommended Molding Pressure300-350kg/cm2
    Max Sintering Temp.370-375℃

    Attention:

    This product is a fluoroplastic material. Normal precautions observed with fluoroplastics should be followed.


    Packaging, Storage and Transportation:

    1. The product is packed in two layers of plastic bags in a hard bucket with a net content of 25kg per barrel.

    2. The products shall be transported as non-dangerous chemical. During transportation, prevent from humidity, intense vibration and package damage.

    3. Products should be stored in a clean, cool and dry warehouse to prevent the mixing of dust, moisture and other impurities.
